Aggregation 10G Switch MES5312

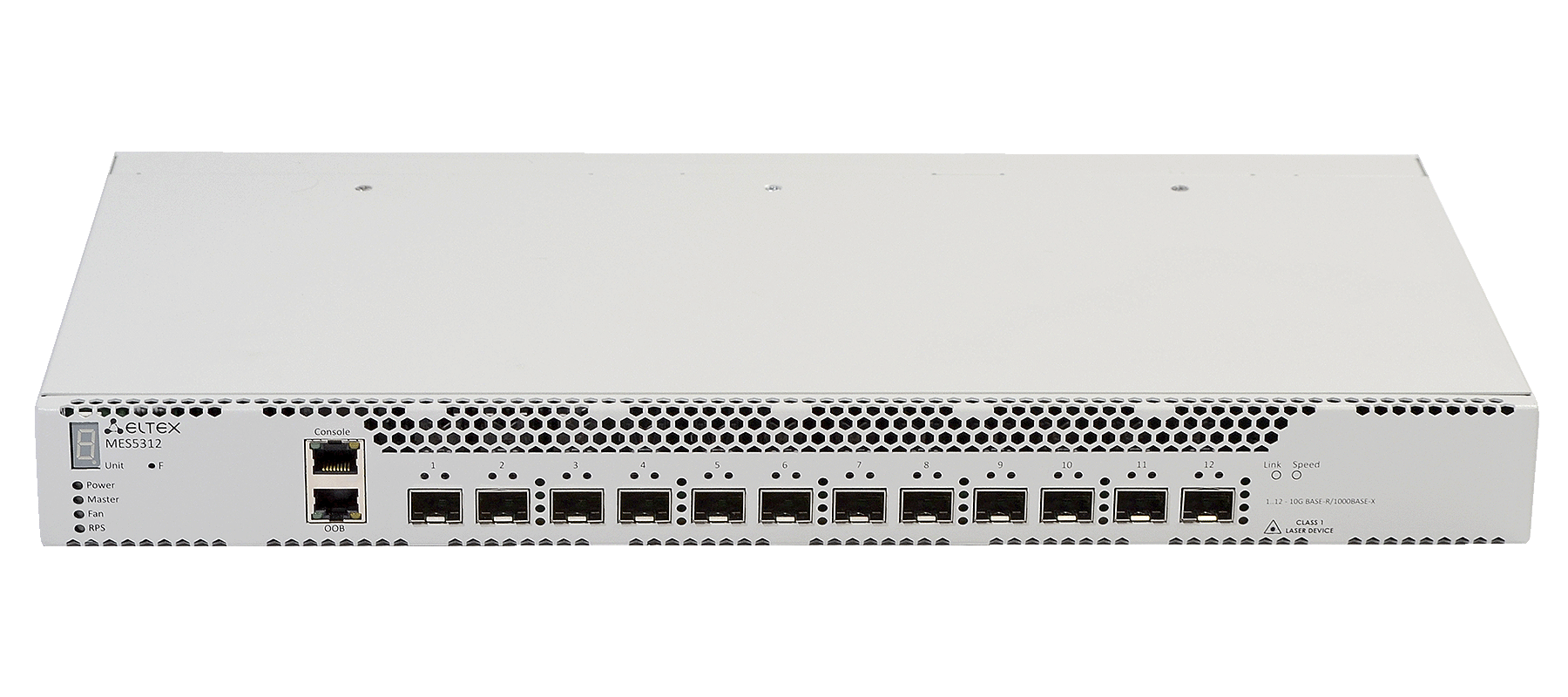

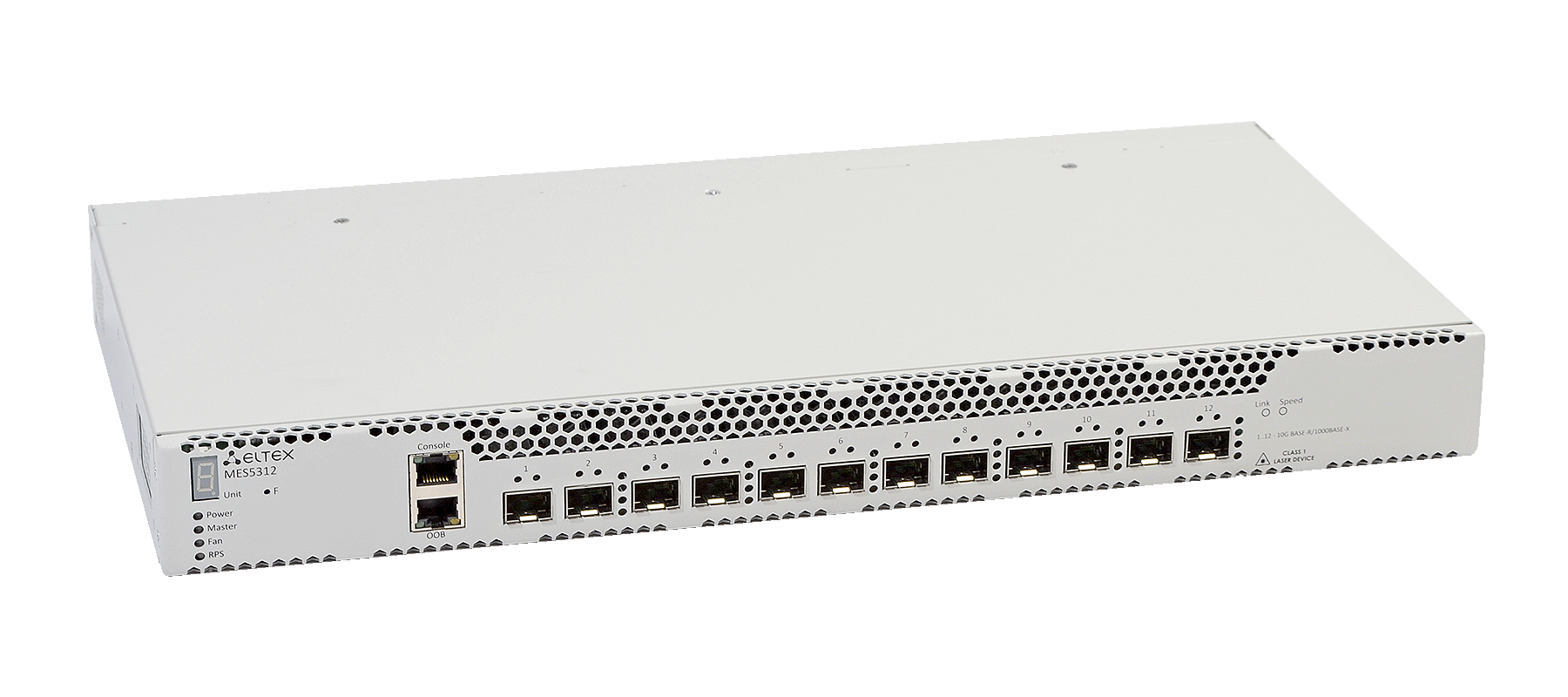

Interfaces

• 10GBASE-R (SFP+)/1000BASE-X (SFP) - 12
• 10/100/1000BASE-T (OOB) - 1
• Console port RS-232 (RJ-45) - 1

Performance

• Bandwidth - 240 Gbps
• Throughput for 64 bytes¹ - 178 MPPS
• Buffer memory - 2 MB
• RAM (DDR3) - 1 GB²
• ROM (NAND Flash) - 1 GB
• MAC table - 32768
• ARP table³ - 8183
• VLAN table - 4094
• L2 Multicast group - 4092
• SQinQ rules - 1320 (ingress), 1320 (egress)
• MAC ACL rules - 6072
• IPv4/IPv6 ACL rules - 6072/3049
• L3 IРv4 Unicast routes⁴ - 16286
• L3 IРv6 Unicast routes⁴ - 4070
• L3 IРv4 Multiicast (IGMP Proxy, PIM) routes² - 8143
• L3 IРv6 Multiicast (IGMP Proxy, PIM) routes² - 2033
• VRRP routers - 127
• Maximum size of ECMP groups - 64
• VRF number - 16 (including default VRF)
• L3 interfaces - 2050
• Maximum number of VXLAN - 2094
• Link Aggregation Groups (LAG) - 128, up to 8 ports in one LAG
• Quality of Services (QoS) - 8 egress queues per port
• Jumbo frames - 10240 bytes
• Stacking - up to 8 devices

Interface features

• Head-of-line blocking (HOL) protection
• Back pressure
• Auto MDI/MDIX
• Jumbo frames
• Flow Control (IEEE 802.3X)
• Port Mirroring (SPAN, RSPAN)
• Stacking

MAC address functions

• Independent learning mode per VLAN
• MAC Multicast Support
• Configurable aging time of MAC addresses
• Static MAC Entries
• MAC Flapping

VLAN functions

• Voice VLAN
• IEEE 802.1Q
• Q-in-Q
• Selective Q-in-Q
• GVRP

L2 Multicast functions

• Multicast groups
• Static Multicast groups
• IGMP Snooping v1,2,3
• Host/port-based IGMP Snooping Fast Leave
• PIM-Snooping
• IGMP proxy-report
• IGMP authorization through RADIUS
• MLD Snooping v1,2
• IGMP Querier
• MVR

L2 functions

• STP (Spanning Tree Protocol, IEEE 802.1d)
• RSTP (Rapid Spanning Tree Protocol, IEEE 802.1w)
• MSTP (Multiple Spanning Tree Protocol, IEEE 802.1s)
• PVSTP+
• RPVSTP+
• Spanning Tree Fast Link option
• STP Root Guard
• BPDU Filtering
• STP BPDU Guard
• LBD (Loopback Detection)
• ERPS (G.8032v2)
• Flex-link
• Private VLAN
• L2PT (Layer 2 Protocol Tunneling)

L3 functions

• Static IP routes
• Dynamic routing protocols RIPv2, OSPFv2, OSPFv3, IS-IS (IPv4 Unicast), BGP⁵ (IPv4 Unicast, IPv4 Multicast)
• BFD protocols (for BGP)
• ARP (Address Resolution Protocol)
• Proxy ARP
• Policy-Based Routing (IPv4)
• VRRP
• Multicast dynamic routing protocols PIM SM, PIM DM,IGMP Proxy, MSDP
• ECMP Load Balancing
• IP Unnumbered
• VRF lite

EVPN/VXLAN⁶

• L2VPN
• L3VPN(symmetric IRB)
• Ingress replication
• Multicast replication
• EVPN multihoming
• Anycast gateway
• ARP suppression
• IPv4 gateway address (for type 5 routes)
• MAC mobility

Link Aggregation functions

• LAG groups creation
• LACP
• LAG Balancing Algorithm
• MLAG (Multi-Switch Link Aggregation Group)

IPv6 functions

• IРv6 Host
• Dual-stack IРv6, IРv4

Service functions

• Optical transceiver diagnostics
• Green Ethernet

Security functions

• Protection against unauthorized DHCP servers (DHCP Snooping)
• DHCP option 82
• IP Source Guard
• Dynamic ARP Inspection
• sFlow
• MAC-based authentication, Port Security, Static MAC entries
• Port-based authentication IEEE 802.1x
• Guest VLAN
• DoS attack prevention
• Traffic segmentation
• DHCP clients filtering
• BPDU attack prevention
• NetBIOS/NetBEUI filtering

Access Control Lists (ACL)

•  L2-L3-L4 ACL (Access Control List)
• Time-Based ACL
• IРv6 ACL
• ACL based on:
  • Switch port
  • IEEE 802.1p
  • VLAN ID
  • EtherType
  • DSCP
  • IP protocol type
  • TCP/UDP port numbe

Quality of Service (QoS) and rate limiting

• QoS statistics
• Shaping, Policing
• IEEE 802.1р Class of Service
• Storm control for different traffics (broadcast, multicast,unknown unicast)
• Bandwidth management
• Strict Priority and Weighted Round Robin (WRR) schedulingalgorithms
• Three marking colors
• ACL-based CoS/DSCPassignment
• ACL-based VLAN assignment
• Setting the IEEE 802.1p priority for management VLAN
• DSCP to CoS, CoS to DSCP remarking
• 802.1p, DSCP mark assignment for IGMP

OAM

• 802.3ah Ethernet Link OAM
• 802.3ah Unidirectional Link Detection

Management functions

• Configuration file download and upload viaTFTP/SCP
• SNMP
• CLI (Command Line Interface)
• Web interface
• Syslog
• SNTP (Simple Network Time Protocol)
• Traceroute
• LLDP (802.1ab) + LLDP MED
• LLDP (IEEE 802.1ab)
• Access control - privilege levels for users
• Management ACL
• Management interface blocking
• Local authentication
• IP addresses filtering for SNMP
• RADIUS/TACACS+ client (Terminal Access Controller AccessControl System)
• Telnet server, SSH server
• Telnet client, SSH client
• SSL
• Macrocommands
• CLI commands logging
• System log
• DHCP autoprovision
• DHCP Relay (Option 82)
• DHCP Option 12
• DHCP server
• Debugging commands
• Traffic to CPU rate limiting
• Password encryption
• Password recovery
• Ping (IPv4/IPv6)

Monitoring functions

•  Interface statistics
• RMON/SMON remote monitoring
• IP SLA
• CPU utilization monitoring per task and per traffic type
• Temperature monitoring
• TCAM monitoring

MIB

• RFC 1065, 1066, 1155, 1156, 2578 MIB Structure
• RFC 1212 Concise MIB Definitions
• RFC 1213 MIB II
• RFC 1215 MIB Traps Convention
• RFC 1493, 4188 Bridge MIB
• RFC 1157, 2571-2576 SNMP MIB
• RFC 1901-1908, 3418, 3636, 1442, 2578 SNMPv2 MIB
• RFC 1271,1757, 2819 RMON MIB
• RFC 2465 IPv6 MIB
• RFC 2466 ICMPv6 MIB
• RFC 2737 Entity MIB
• RFC 4293 IPv6 SNMP Mgmt Interface MIB
• Private MIB
• RFC 2021 RMONv2 MIB
• RFC 1398, 1643, 1650, 2358, 2665, 3635 Ether-like MIB
• RFC 2668 IEEE 802.3 MAU MIB
• RFC 2674, 4363 IEEE 802.1p MIB
• RFC 2233, 2863 IF MIB
• RFC 2618 RADIUS Authentication Client MIB
• RFC 4022 MIB for TCP
• RFC 4113 MIB for UDP
• RFC 3289 MIB for Diffserv
• RFC 2620 RADIUS Accounting Client MIB
• RFC 2925 Ping & Traceroute MIB
• RFC 768 UDP
• RFC 791 IP
• RFC 792 ICMPv4
• RFC 2463, 4443 ICMPv6
• RFC 4884 Extended ICMP for Multi-Part messages support
• RFC 793 TCP
• RFC 2474, 3260 Definition of the DS field in the IPv4 and IPv6headers
• RFC 1321, 2284, 2865, 3580, 3748 Extensible AuthenticationProtocol (EAP)
• RFC 2571-2574 SNMP
• RFC 826 ARP
• RFC 854 Telnet
• IEC 61850

Physical parameters and environmental features

• Power supply:
  • AC: 100 – 240 V, 50–60 Hz; DC: 36 – 72 V
  • Power supply options: 1 AC/DC power supply; 2 hot-swappabe AC/DC power supplies
• Input current - 1.2– 0.3 A for AC; 1.3–0.6 A for DC
• Maximum power consumption - 25 W
• Heat dissipation - 25 W
• Dying Gasp suppor - no
• Operating temperature - from -10 to +45°С
• Storage temperature - from -50 to +70°С
• Operating humidity - no more than 80 %

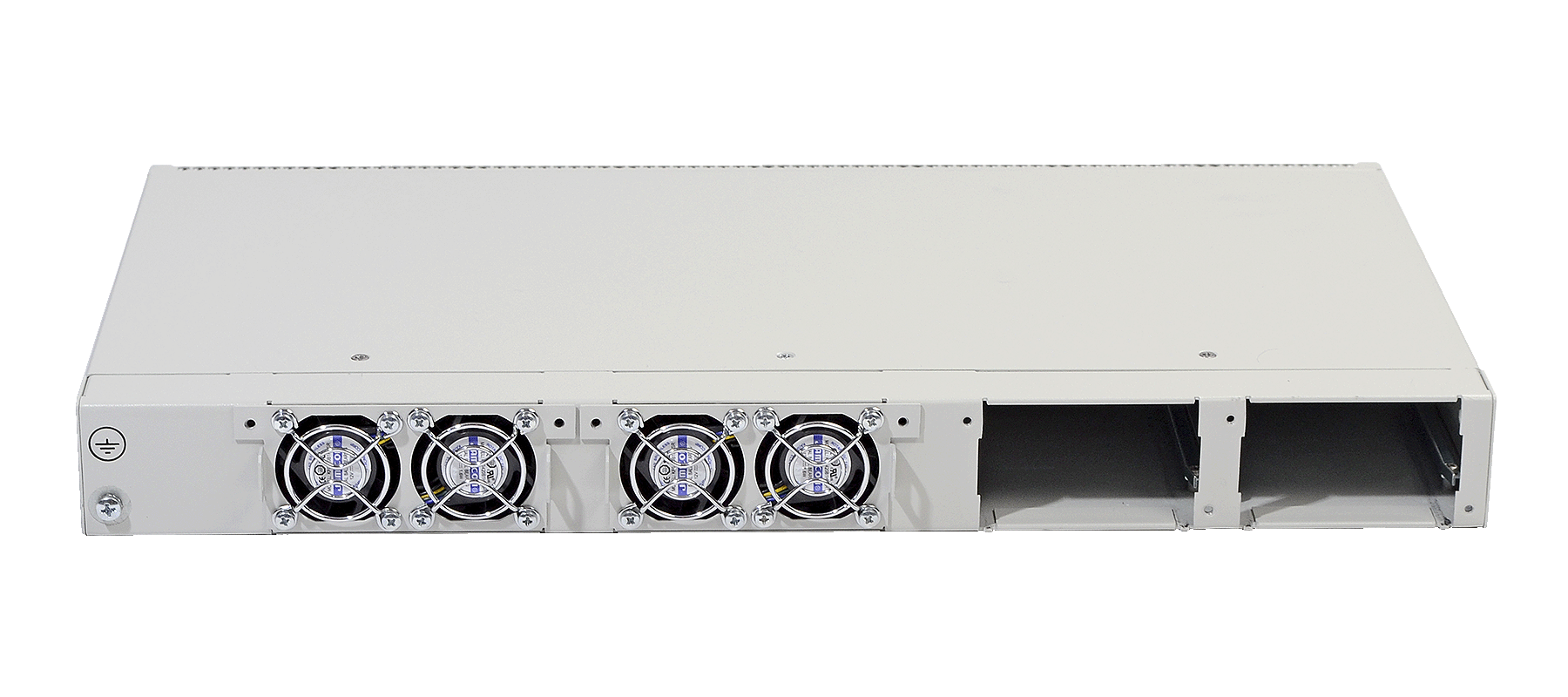

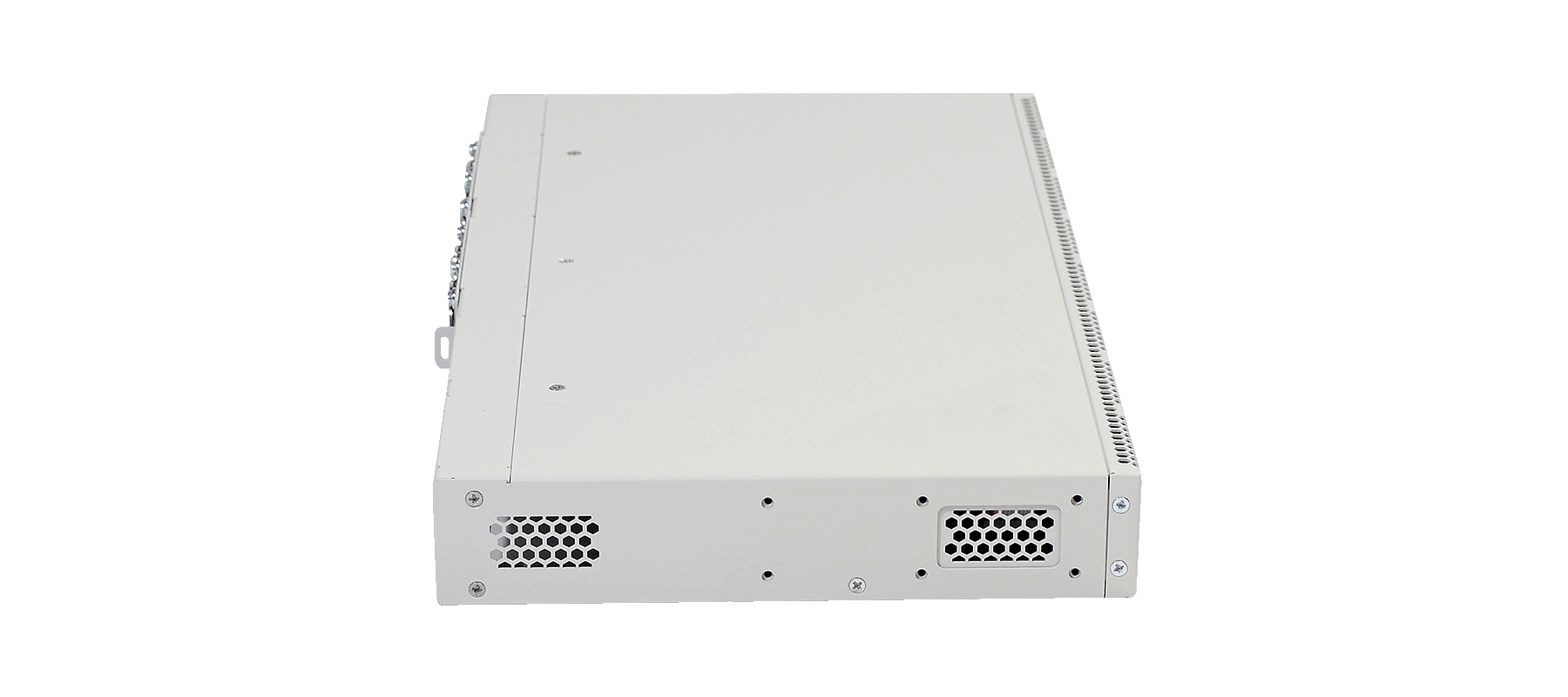

• Cooling - Front-to-Back, 4 fans
• Form factor - 19", 1U
• Dimensions (W × H × D) - 430 × 44 × 230 mm
• Weight - 3.8 kg

¹Values are given for one way transmission.

²RAM for MES5316A rev.C, MES5324A rev.C, MES5332A rev.C, MES5316A rev.C1, MES5324A rev.C1 models is 2 GB.

³For each host in the ARP table, an additional entry is created in the switching table. The number of ARP entries with an installed EVPN license for MES5312, MES5316A,MES5324A, MES5332A is 6135.

⁴IPv4/IPv6 Unicast/Multicast routes share hardware resources.

⁵BGP protocol support is provided under license.

⁶EVPN technology support is provided under license.
