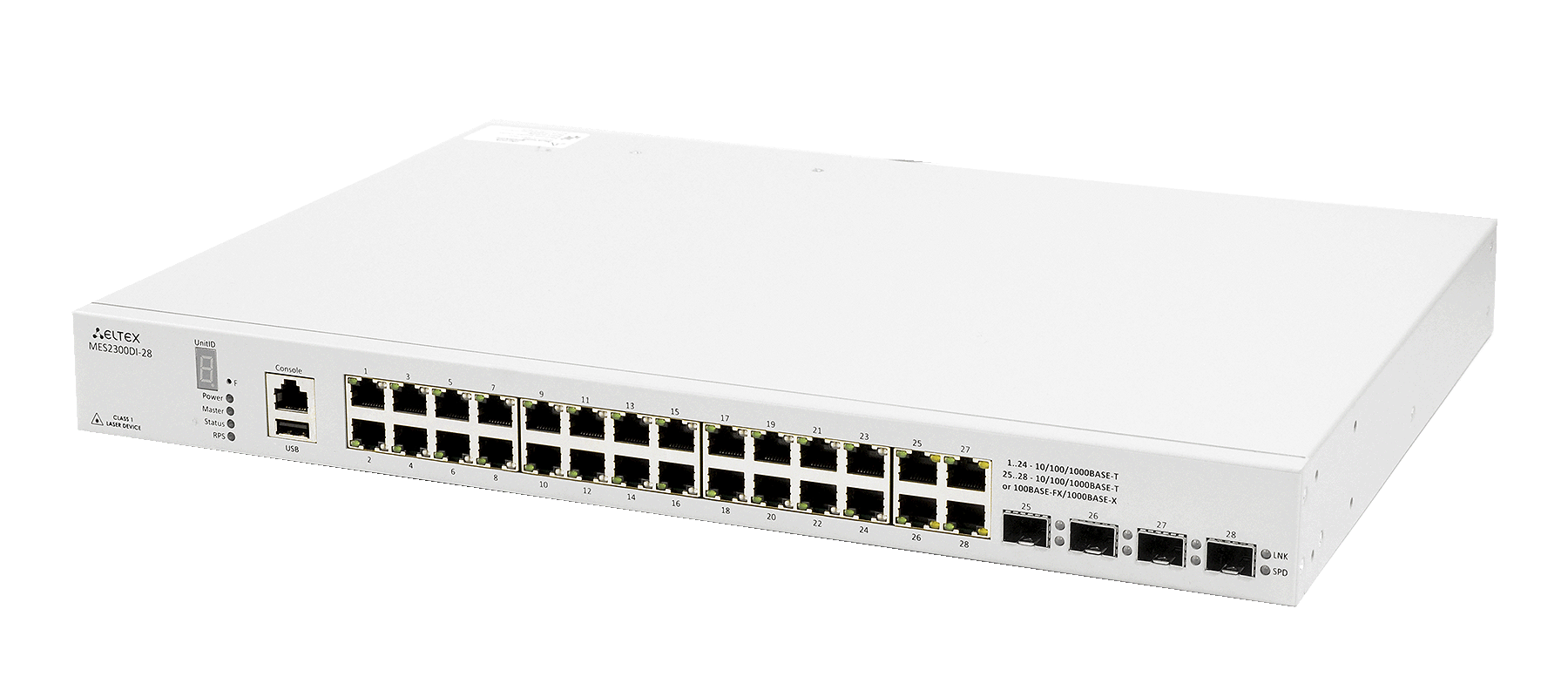

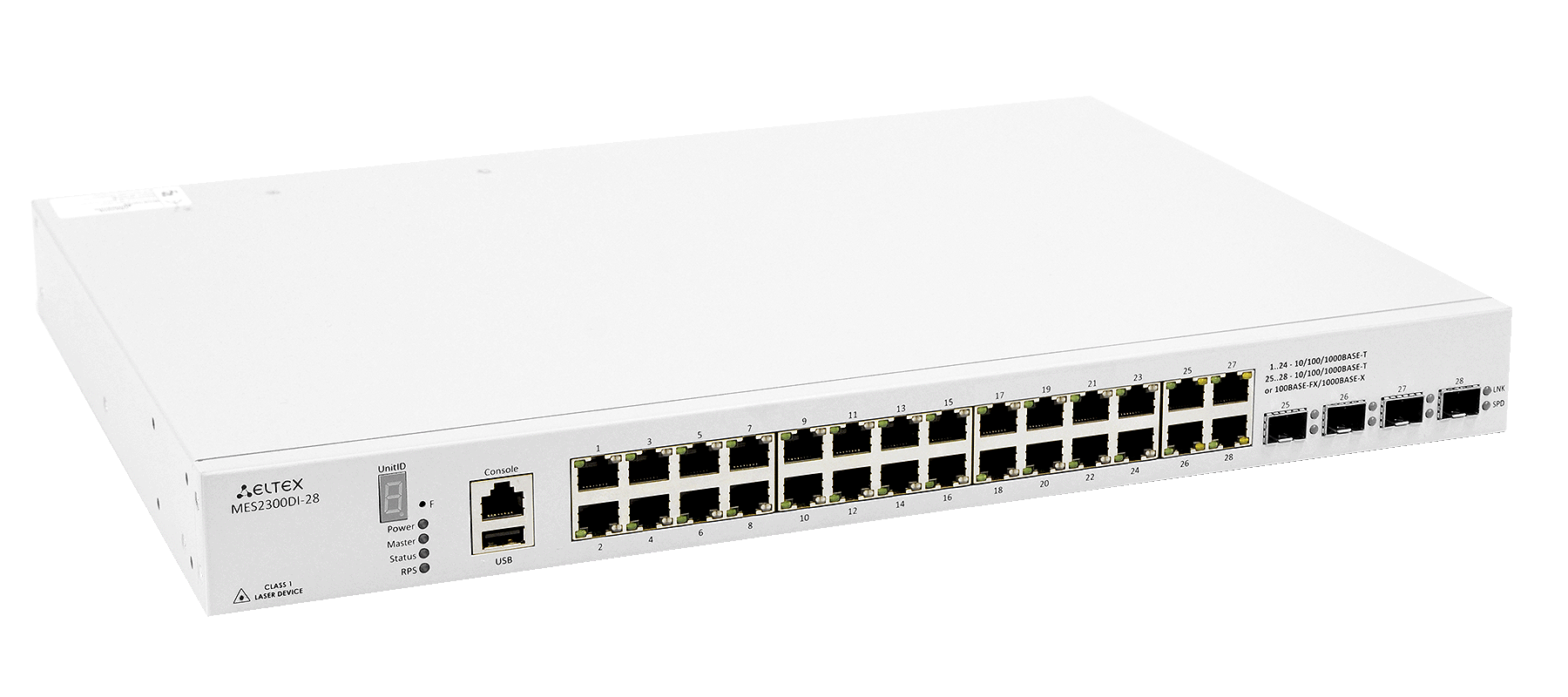

Industrial switch MES2300DI-28
Mass production
- Bandwidth up to 56 Gbps
- Non-blocking architecture
- L3 switches
- Stacking up to 8 devices
- Hot-swappable redundant power supplies
- Passive cooling
- Multicast support (IGMP Snooping, MVR)
- Advanced security functions (L2-L4 ACL, IP Source Guard,
- Dynamic ARP Inspection, etc.)
MES2300DI-28 industrial switch is designed to organize secure fault-tolerant data transmission networks at sites where it is necessary to meet requirements for ensuring resistance to temperature.

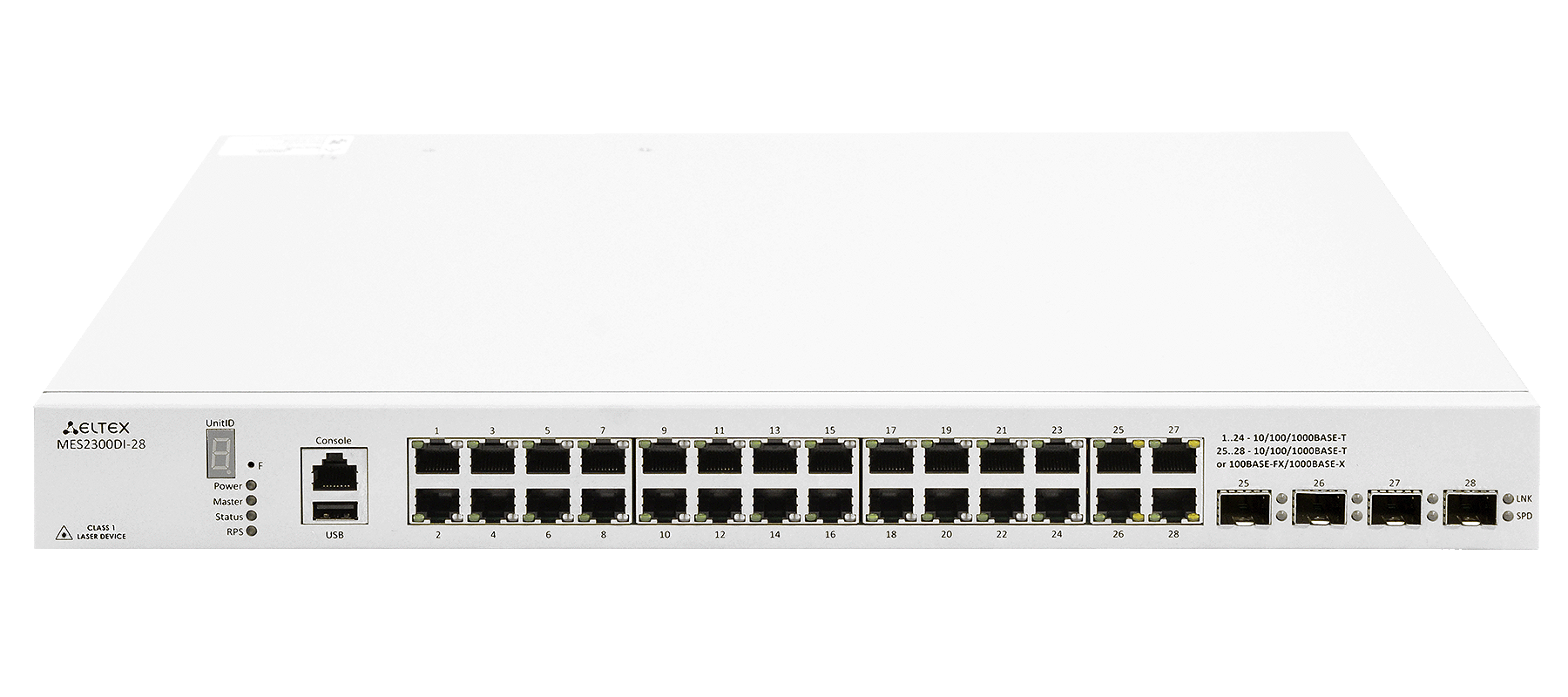

The MES2300DI-28 industrial switch has 10/100/1000BASE-T Gigabit ports, as well as 10/100/1000BASE-T/1000BASE-X/100BASE-FX combo ports for optical cable connection.

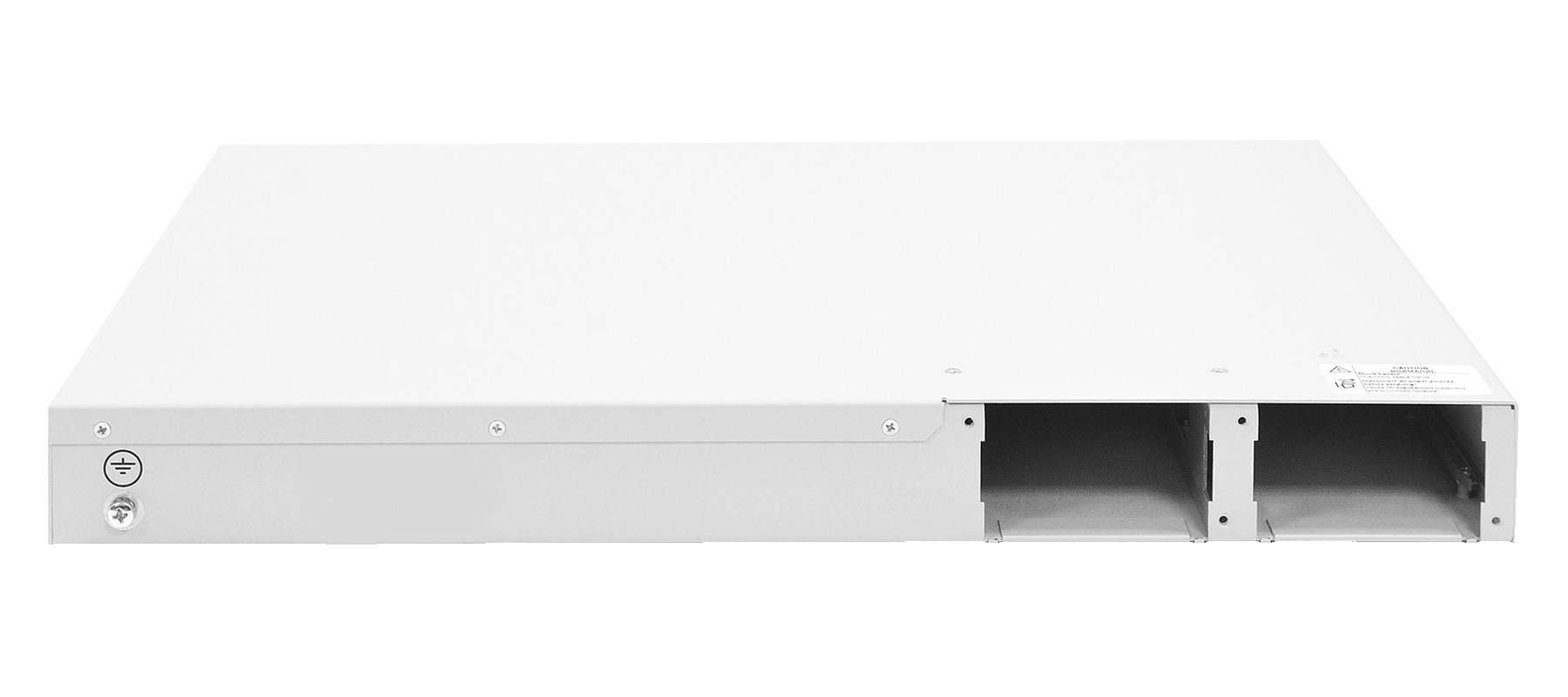

The switch features are passive cooling and hot-swappable power supply redundancy.
Show all
Specifications
Documents and files
Warranty
Interfaces
- 10/100/1000BASE-T (RJ-45) - 24
- 10/100/1000BASE-T/1000BASE-X/100BASE-FX Combo - 4
- Console port RS-232 (RJ-45) - 1
- USB 2.0 - 1
Performance
- Bandwidth - 56 Gbps
- Throughput for 64 bytes1 - 41.6 MPPS
- Buffer memory - 1.5 MB
- RAM (DDR4) - 2 GB
- ROM (RAW NAND) - 512 MB
- MAC table - 16384
- ARP table2 - 2039
- VLAN table - 4094
- L2 Multicast groups - 2048
- SQinQ rules - 988 ingress, 988 egress
- MAC ACL rules - 1966
- IPv4/IPv6 ACL rules - 1975/988
- L3 IPv4 Unicast routes¹ - 4064
- L3 IPv6 Unicast routes¹ - 1014
- L3 IPv4 Multicast (IGMP Proxy, PIM) routes1 - 2029
- L3 IPv6 Multicast (IGMP Proxy, PIM) routes1 - 505
- VRRP routers - 255
- Maximum size of ECMP groups - 8
- VRF number - 16 (including default VRF)
- L3 interfaces - 2032
- Link Aggregation Groups (LAG) - 32, up to 8 ports per LAG
- Quality of Service (QoS) - 8 egress queues per port
- Jumbo frames size - 10240 bytes
- Stacking - up to 8 devices
Interface features
- Head-of-line blocking (HOL) protection
- Back pressure
- Auto MDI/MDIX
- Jumbo frames
- Flow Control (IEEE 802.3X)
- Port Mirroring (SPAN, RSPAN)
- Stacking
МAC address functions
- Independent learning mode per VLAN
- MAC Multicast Support
- Configurable aging time of MAC addresses
- Static MAC Entries
- MAC Flapping logging
VLAN functions
- Voice VLAN
- IEEE 802.1Q
- Q-in-Q
- Selective Q-in-Q
- GVRP
L2 Multicast functions
- Multicast profiles
- Static Mullticast groups
- IGMP Snooping v1,2,3
- Host/port-based IGMP Snooping Fast Leave
- IGMP proxy-report
- IGMP authorization via RADIUS
- MLD Snooping v1,2
- IGMP Querier
- MVR
L2 functions
- STP (Spanning Tree Protocol, IEEE 802.1d)
- RSTP (Rapid Spanning Tree Protocol, IEEE 802.1w)
- MSTP (Multiple Spanning Tree Protocol, IEEE 802.1s)
- PVSTP+
- RPVSTP+
- Spanning Tree Fast Link option
- STP Root Guard
- BPDU Filtering
- STP BPDU Guard
- LBD (Loopback Detection)
- ERPS (G.8032v2)
- Flex-link
- Private VLAN
- L2PT (Layer 2 Protocol Tunneling)
L3 functions
- Static IP routes
- Dynamic routing protocols RIPv2, OSPFv2, OSPFv3, IS-IS (IPv4 Unicast), BGP² (IPv4 Unicast, IPv4 Multicast)
- BFD protocol (for BGP)
- ARP (Address Resolution Protocol)
- Proxy ARP
- Policy-Based Routing (IPv4)
- VRRP
-
Multicast dynamic routing protocols PIM SM, PIM DM, IGMP Proxy, MSDP
- ECMP Load Balancing
- IP Unnumbered
- VRF lite
Link Aggregation functions
- LAG (Link Aggregation Groups)
- LACP
- LAG Balancing Algorithm
- MLAG (Multi-Switch Link Aggregation Group)
IPv6 functions
- IРv6 Host
- Dual-stack IРv6, IРv4
Service functions
- VCT (Virtual Cable Tester)
- Optical transceiver diagnostics
- Green Ethernet
Security functions
- Protection against unauthorized DHCP servers (DHCP Snooping)
- DHCP option 82
- IP Source Guard
- Dynamic ARP Inspection
- sFlow
- MAC-based authentication, MAC address limitation, static MAC entries
- Port-based authentication 802.1x
- Guest VLAN
- DoS attack prevention
- Traffic segmentation
- DHCP clients filtering
- BPDU attack prevention
- NetBIOS/NetBEUI filtering
Access Control Lists (ACL)
- L2-L3-L4 ACL (Access Control List)
- Time-Based ACL
- IРv6 ACL
- ACL based on:
- Switch port
- IEEE 802.1p
- VLAN ID
- EtherType
- DSCP
- Protocol type
- TCP/UDP port number
- User Defined Bytes
Quality of Service (QoS)
- QoS statisticsc
- Shaping, Policing
- IEEE 802.1р Class of Service
- Storm control for different traffics (broadcast, multicast, unknown unicast)
- Bandwidth management
- Strict Priority and Weighted Round Robin (WRR) scheduling algorithms
- Three marking colors
- ACL-based traffic classification
- ACL-based CoS/DSCP assignment
- Setting the 802.1p priority for management VLAN
- DSCP to CoS, CoS to DSCP remarking
- ACL-based VLAN assignment
- 802.1p DSCP mark assignment for IGMP
ОАМ
- 802.3ah Ethernet Link OAM
- 802.3ah Unidirectional Link Detection
Management functions
- Configuration file download and upload via TFTP/SCP
- SNMP
- CLI (Command Line Interface)
- Web interface
- Syslog
- SNTP (Simple Network Time Protocol)
- Traceroute
- LLDP (802.1ab) + LLDP MED
- LLDP (IEEE 802.1ab)
- Access control — privilege levels for users
- Management ACL
- Management interface blocking
- Local authentication
- IP addresses filtering for SNMP
- RADIUS, TACACS+ (Terminal Access Controller Access Control System) clients
- Telnet server, SSH server
- Telnet client, SSH client
- SSL
- Macrocommands
- CLI command logging
- System log
- DHCP autoprovision
- DHCP Relay (IPv4 support)
- DHCP Option 12
- Debbugging commands
- Rate limit of traffic to CPU
- Password encryption
- Password recovery
- Ping (IPv4/IPv6)
Monitoring functions
- Interface statistics
- RMON/SMON remote monitoring
- IP SLA
- Task and traffic type-based CPU utilization monitoring
- RAM monitoring
- Temperature monitoring
- TCAM monitoring
MIB
- RFC 1065, 1066, 1155, 1156, 2578 MIB Structure
- RFC 1212 Concise MIB Definitions
- RFC 1213 MIB II
- RFC 1215 MIB Traps Convention
- RFC 1493, 4188 Bridge MIB
- RFC 1157, 2571-2576 SNMP MIB
- RFC 1901-1908, 3418, 3636, 1442, 2578 SNMPv2 MIB
- RFC 1271,1757, 2819 RMON MIB
- RFC 2465 IPv6 MIB
- RFC 2466 ICMPv6 MIB
- RFC 2737 Entity MIB
- RFC 4293 IPv6 SNMP Mgmt Interface MIB
- Private MIB
- RFC 2021 RMONv2 MIB
- RFC 1398, 1643, 1650, 2358, 2665, 3635 Ether-like MIB
- RFC 2668 IEEE 802.3 MAU MIB
- RFC 2674, 4363 IEEE 802.1p MIB
- RFC 2233, 2863 IF MIB
- RFC 2618 RADIUS Authentication Client MIB
- RFC 4022 MIB for TCP
- RFC 4113 MIB for UDP
- RFC 3289 MIB for Diffserv
- RFC 2620 RADIUS Accounting Client MIB
- RFC 2925 Ping & Traceroute MIB
- RFC 768 UDP
- RFC 791 IP
- RFC 792 ICMPv4
- RFC 2463, 4443 ICMPv6
- RFC 4884 Extended ICMP for Multi-Part messages support
- RFC 793 TCP
- RFC 2474, 3260 Definition of the DS field in the IPv4 and IPv6 Headers
- RFC 1321, 2284, 2865, 3580, 3748 Extensible Authentication Protocol (EAP)
- RFC 2571-2574 SNMP
- RFC 826 ARP
- RFC 854 Telnet
Physical features and ambient parameters
- Power supply - 100–240 V AC, 50–60 Hz; 36–72 V DC; Power supply options:
- 1 AC/DC power supply
-
2 hot-swappable AC/DC power supplies
-
Input current
-
0.2-0.4 A for AC
- 0.3-0.8 A for AC
-
-
Maximum power consumption - 31 W
-
Heat dissipation - 31 W
-
Dying Gasp support - no
-
Operating temperature - from -40 to +60 °С
-
Storage temperature - from -50 to +70 °С
-
Housing - metal, IP30
-
Cooling - passive
-
Form factor - 19", 1U
-
Dimensions (W × H × D) - 430 × 44 × 305 mm
-
Weight - 4.95 kg
1Pv4/IPv6 Unicast/Multicast routes share hardware resources.
2 BGP protocol support is provided under the license.
