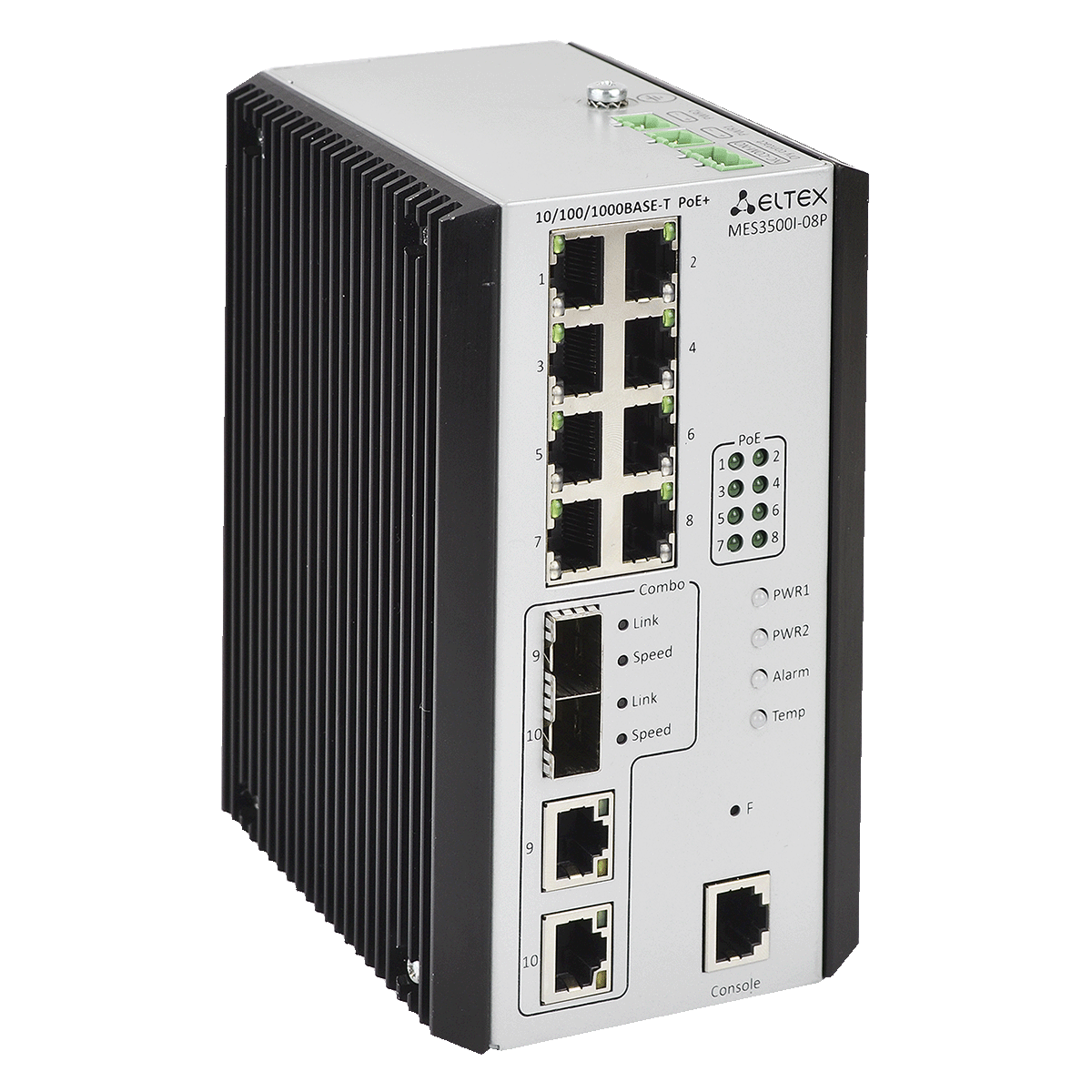

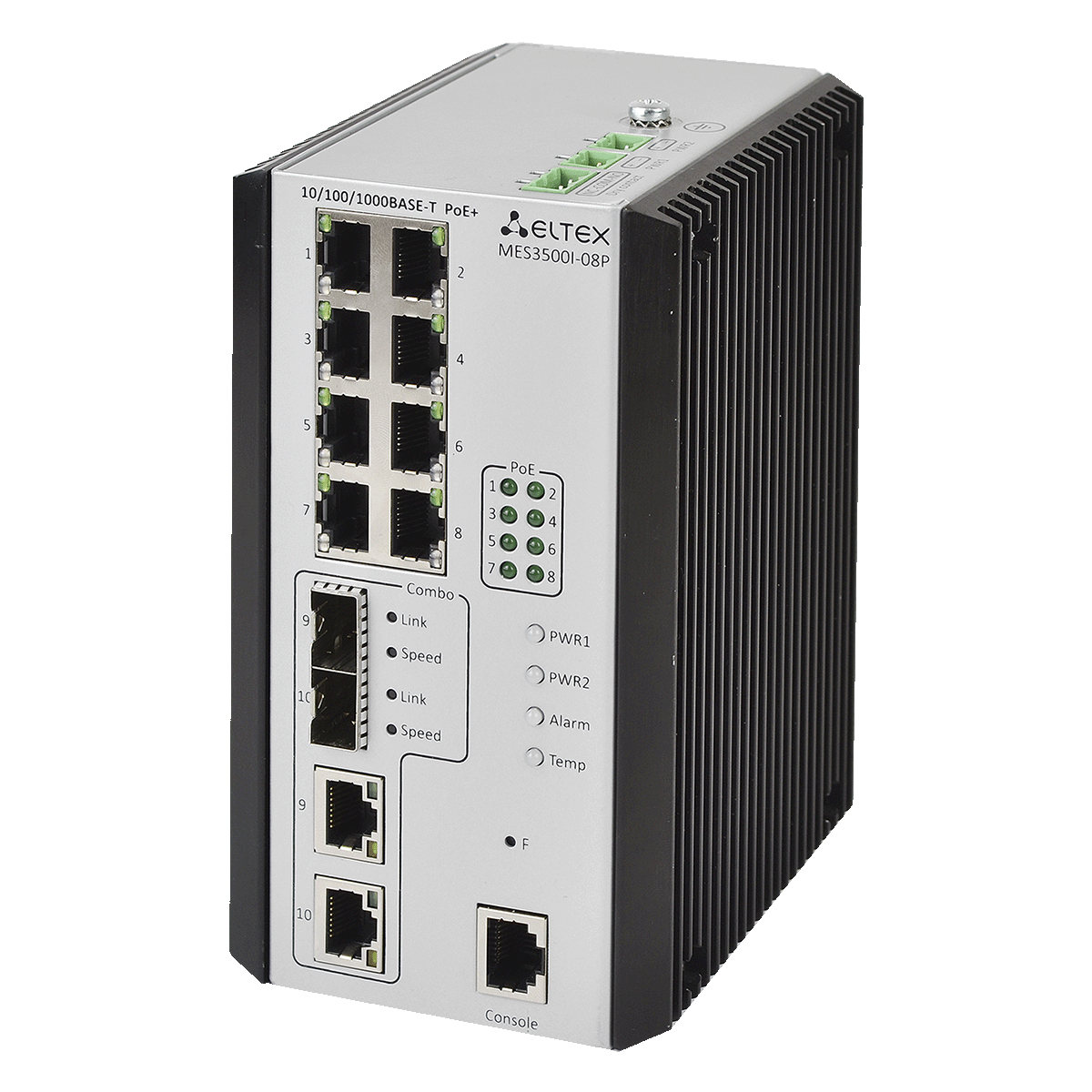

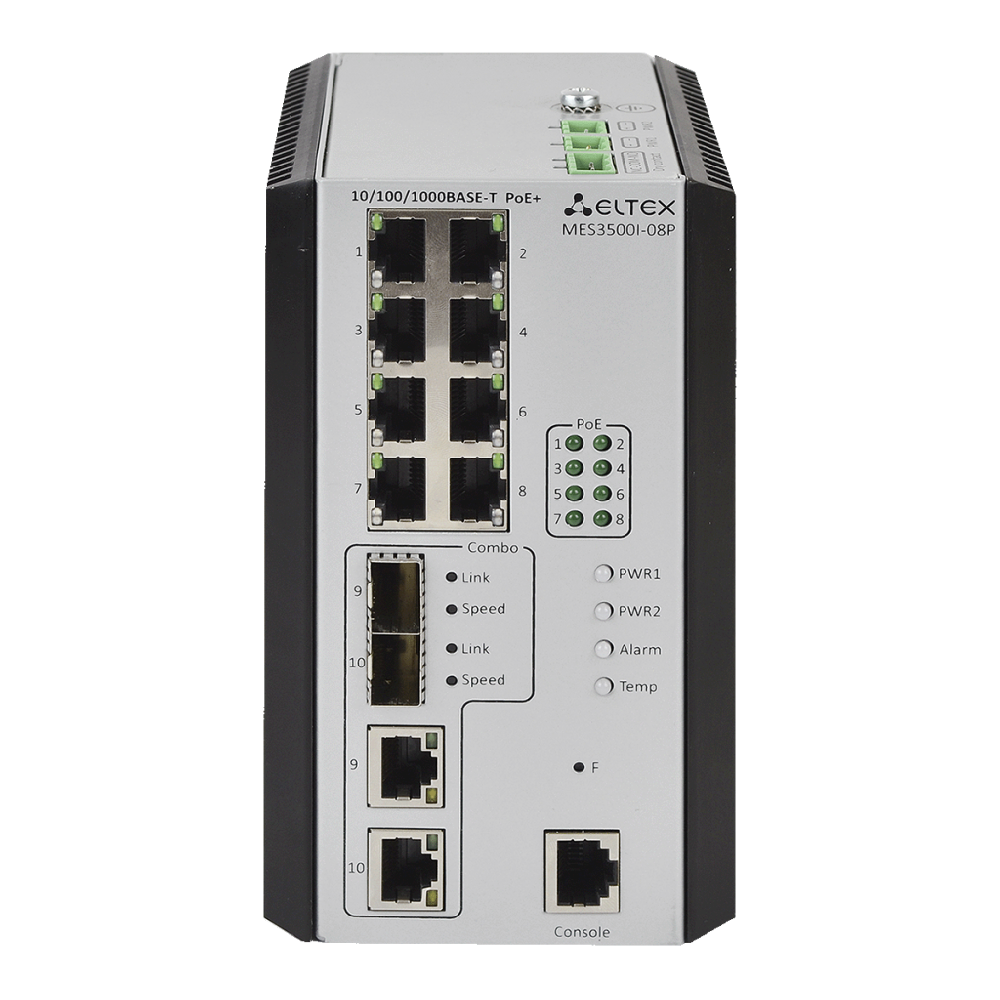

Industrial switch MES3500I-08P

Interfaces

• 10/100/1000BASE-T (RJ-45) PoE/PoE+ - 8
• 10/100/1000BASE-T/100BASE-FX/1000BASE-X (RJ-45/SFP) Combo - 2
• Console port RS-232 (RJ-45) - 1

Performance

• Bandwidth - 20 Gbps
• Throughoutput for 64 bytes¹ - 14.8 MPPS
• Buffer memory - 1.5 MB
• RAM (DDR4) - 2 GB
• ROM (RAW NAND) - 512 MB
• MAC table - 16384
• ARP table² - 4087
• VLAN table - 4094
• L2 Multicast groups - 4092
• SQinQ rules - 1320 (ingress), 1320 (egress)
• MAC ACL rules - 2999
• IPv4/IPv6 ACL rules - 2999/1499
• L3 IPv4 Unicast routes³ - 13280
• L3 IPv6 Unicast routes³ - 3317
• L3 IPv4 Multicast (IGMP Proxy, PIM) routes³ - 4087
• L3 IPv6 Multicast (IGMP Proxy, PIM) routes³ - 1657
• VRRP routers - 255
• Maximum size of ECMP groups - 8
• VRF number - 16 (including default VRF)
• L3 interfaces - 2050
• Link Aggregation Groups (LAG) - 32, up to 8 ports in one LAG
• Quality of Service (QoS) - 8 egress queues per port
• Jumbo frames - 10240 bytes

Interface features

• Head-of-line blocking (HOL) protection
• Back Pressure
• Auto MDI/MDIX
• Jumbo Frames
• Flow Control (IEEE 802.3X)
• Port Mirroring (SPAN, RSPAN)
• Stacking

МAC address functions

• Independent learning mode per VLAN
• MAC Multicast Support
• Configurable aging time of MAC addresses
• Static MAC Entries
• MAC Flapping logging

VLAN Flapping logging

• Voice VLAN
• 802.1Q
• Q-in-Q
• Selective Q-in-Q
• GVRP

L2 Multicast functions

• Multicast profiles
• Static Multicast groups
• IGMP Snooping v1,2,3
• Host/port-based IGMP Snooping Fast Leave
• Pim-Snooping
• IGMP proxy-report
• IGMP authorization through RADIUS
• MLD Snooping v1,2
• IGMP Querier
• MVR

L2 functions

• STP (Spanning Tree Protocol, IEEE 802.1d)
• RSTP (Rapid Spanning Tree Protocol, IEEE 802.1w)
• MSTP (Multiple Spanning Tree Protocol, IEEE802.1s)
• PVSTP+
• RPVSTP+
• Spanning Tree Fast Link option
• STP Root Guard
• BPDU Filtering
• STP BPDU Guard
• Loopback Detection
• ERPS (G.8032v2)
• Flex-link
• Private VLAN
• L2PT (Layer 2 Protocol Tunneling)

L3 functions

• Static IP routes
• Dynamic routing protocols RIPv2, OSPFv2, OSPFv3, IS-IS (IPv4 Unicast), BGP¹ (IPv4 Unicast, IPv4 Multicast)
• BFD protocol (for BGP)
• ARP (Address Resolution Protocol)
• Proxy ARP
• Policy-Based Routing (IPv4)
• VRRP
• Multicast dynamic routing protocols PIM SM, PIM DM,
• IGMP Proxy, MSDP
• ECMP Load Balancing
• IP Unnumbered
• VRF lite

Link Aggregation functions

• LAG (Link Aggregation Groups)
• LACP
• LAG Balancing Algorithm
• MLAG (Multi-Switch Link Aggregation Group)

IPv6 functions

• IPv6 Host
• Dual-stack IPv4, IPv6

Service functions

• VCT (Virtual Cable Tester)
• Optical transceiver diagnostics
• Green Ethernet

Security functions

• Protection against unauthorized DHCP servers (DHCP Snooping)
• DHCP option 82
• IP Source Guard
• Dynamic ARP Inspection
• First Hop Security
• sFlow
• MAC-based authentication, MAC address limitation, static MAC entries
• Port-based authentication 802.1x
• Guest VLAN
• DoS attack prevention
• Traffic segmentation
• DHCP clients filtering
• BPDU attack prevention
• NetBIOS/NetBEUI filtering

Quality of Service (QoS)

• QoS statistics
• Shaping, Policing
• IEEE 802.1р Class of Service
• Storm control for different traffics (broadcast, multicast, unknown unicast)
• Bandwidth management
• Strict Priority and Weighted Round Robin (WRR) scheduling algorithms
• Three marking colors
• ACL-based CoS/DSCP assignment
• ACL-based VLAN assignment
• Setting the 802.1p priority for management VLAN
• DSCP to CoS, CoS to DSCP remarking
• 802.1p DSCP mark assignment for IGMP

OAM

• 802.3ah Ethernet Link OAM
• 802.3ah Unidirectional Link Detection

Access Control Lists (ACL)

• L2-L3-L4 ACL (Access Control List)
• Time-Based ACL
• IPv6 ACL
• ACL based on:
• Switch port
• 802.1p priority
• VLAN ID
• EtherType
• DSCP
• Protocol type
• TCP/UDP port number
• User Defined Bytes

Management functions

• Configuration file download and upload via TFTP/SCP

• SNMP
• CLI (Command Line Interface)
• Web interface
• Syslog
• SNTP (Simple Network Time Protocol)
• Traceroute
• LLDP (802.1ab) + LLDP MED
• Access control — privilege levels for users
• Management interface blocking
• Local authentication
• IP addresses filtering for SNMP
• RADIUS, TACACS+ (Terminal Access Controller Access Control System) clients
• SSH server, Telnet server
• SSH client, Telnet client
• SSL
• Macrocommands
• CLI command logging
• System log
• DHCP autoprovision
• DHCP Relay (Option 82)
• DHCP Option 12
• Debbugging commands
• Rate limit of traffic to CPU
• Password encryption
• Password recovery
• Ping (IPv4/IPv6)

Monitoring functions

• Interface statistics
• RMON/SMON remote monitoring
• IP SLA
• Task and traffic type-based CPU utilization monitoring
• RAM monitoring
• Temperature monitoring
• TCAM monitoring

MIB/IETF

• RFC 1065, 1066, 1155, 1156, 2578 MIB Structure
• RFC 1212 Concise MIB Definitions
• RFC 1213 MIB II
• RFC 1215 MIB Traps Convention
• RFC 1493, 4188 Bridge MIB
• RFC 1157, 2571-2576 SNMP MIB
• RFC 1901-1908, 3418, 3636, 1442, 2578 SNMPv2 MIB
• RFC 1271, 1757, 2819 RMON MIB
• RFC 2465 IPv6 MIB
• RFC 2466 ICMPv6 MIB
• RFC 2737 Entity MIB
• RFC 4293 IPv6 SNMP Mgmt Interface MIB
• Private MIB
• RFC 3289 DIFFSERV MIB
• RFC 2021 RMONv2 MIB
• RFC 1398, 1643, 1650, 2358, 2665, 3635 Ether-like MIB
• RFC 2668 802.3 MAU MIB
• RFC 2674, 4363 802.1p MIB
• RFC 2233, 2863 IF MIB
• RFC 2618 RADIUS Authentication Client MIB
• RFC 4022 MIB for TCP
• RFC 4113 MIB for UDP
• RFC 2620 RADIUS Accounting Client MIB
• RFC 2925 Ping & Traceroute MIB
• RFC 768 UDP
• RFC 791 IP
• RFC 792 ICMPv4
• RFC 2463, 4443 ICMPv6
• RFC 4884 Extended ICMP for Multi-Part messages support
• RFC 793 TCP
• RFC 2474, 3260 Definition of the DS field in the IPv4 and IPv6 Headers
• RFC 1321, 2284, 2865, 3580, 3748 Extensible Authentication Protocol (EAP)
• RFC 2571, RFC2572, RFC2573, RFC2574 SNMP
• RFC 826 ARP
• RFC 854 Telnet
• IEC 61850

Physical features and ambient parameters

• Power supply:
  • with PoE enabled: 45–57 V DC
  • with PoE disabled: 20–57 V DC
• Input current:
  • 45–57 V DC: 6–4.5 A (with PoE enabled)
  • 20–57 V DC: 1.1–0.3 A (with PoE disabled)
• Maximum power consumption (including PoE) - 270 W
• PoE budget - 240 W (for 802.3at standard — 54–56 V DC)
• Heat dissipation - 30 W
• Dying Gasp support - no
• Operating temperature - from -40 to +70 °С
• Storage temperature - from -50 to +85 °С
• Operating humidity - from 5 to 95 % (without condensing)

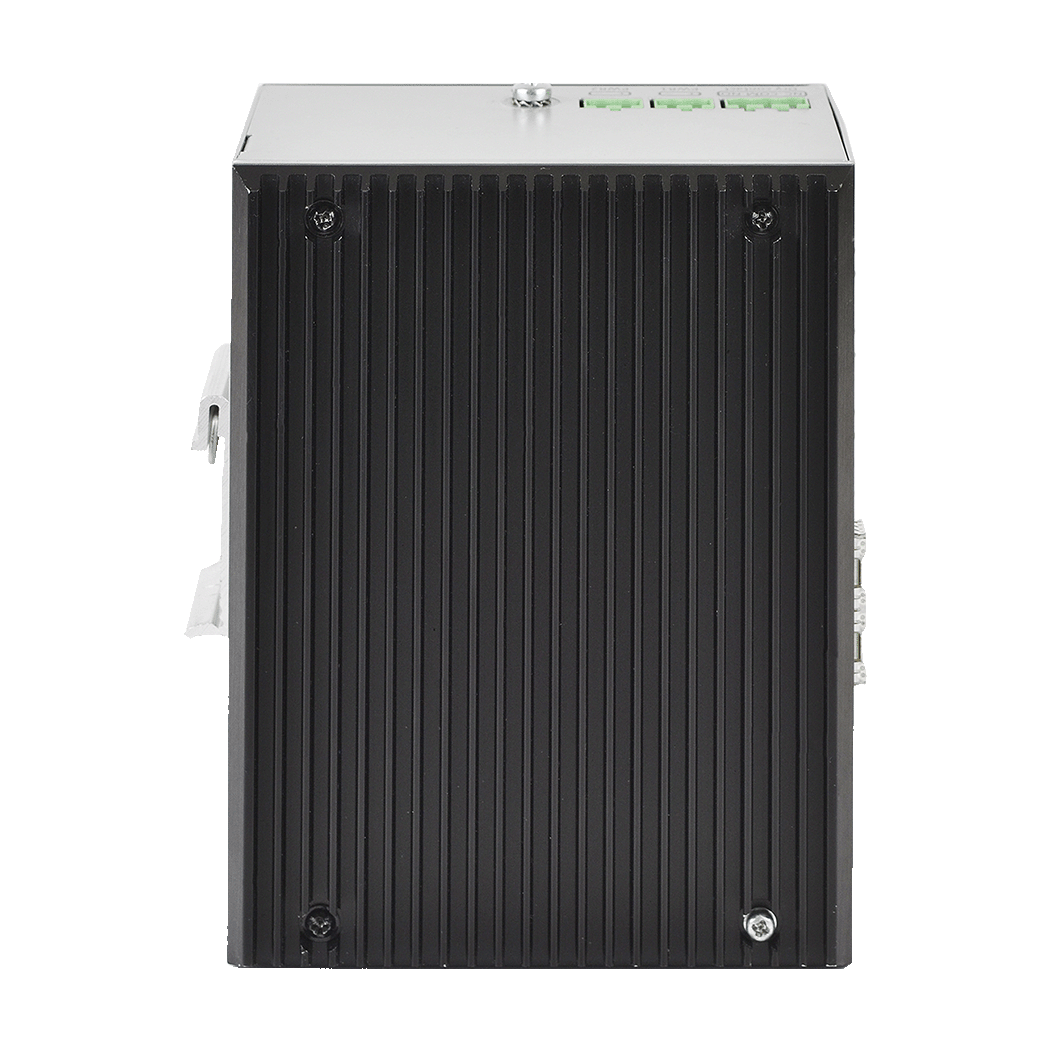

• Cooling - passive
• Housing - metal, IP30

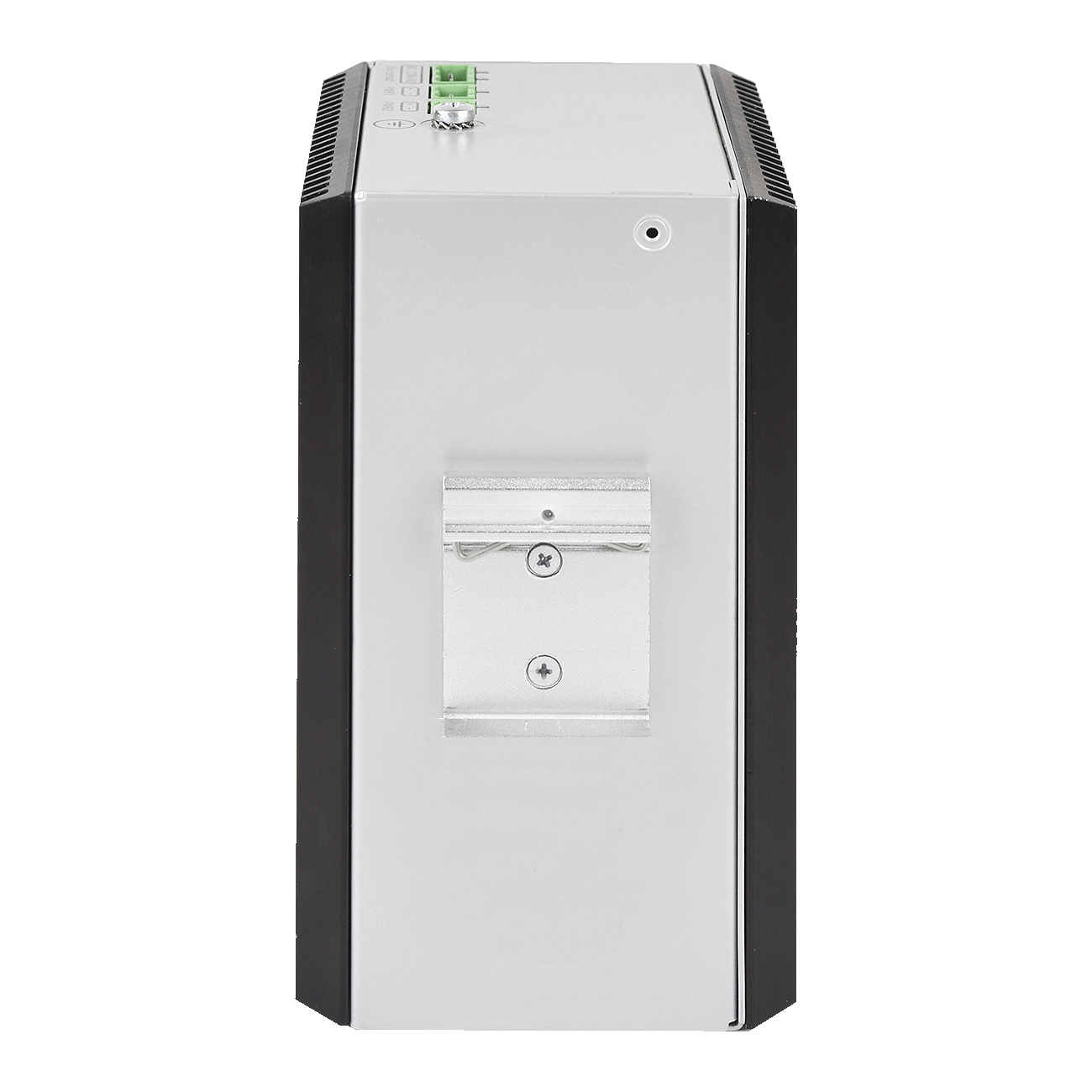

• Mounting - DIN rail for wall mounting (optional)
• Dimensions (W × H × D) - 85 × 152 × 115 mm
• Weight - 1.40 kg

¹ Values are given for one-way transmission.

² For each host in the ARP table, an additional entry is created in the switching table.

³ IPv4/IPv6 Unicast/Multicast routes share hardware resouces.
