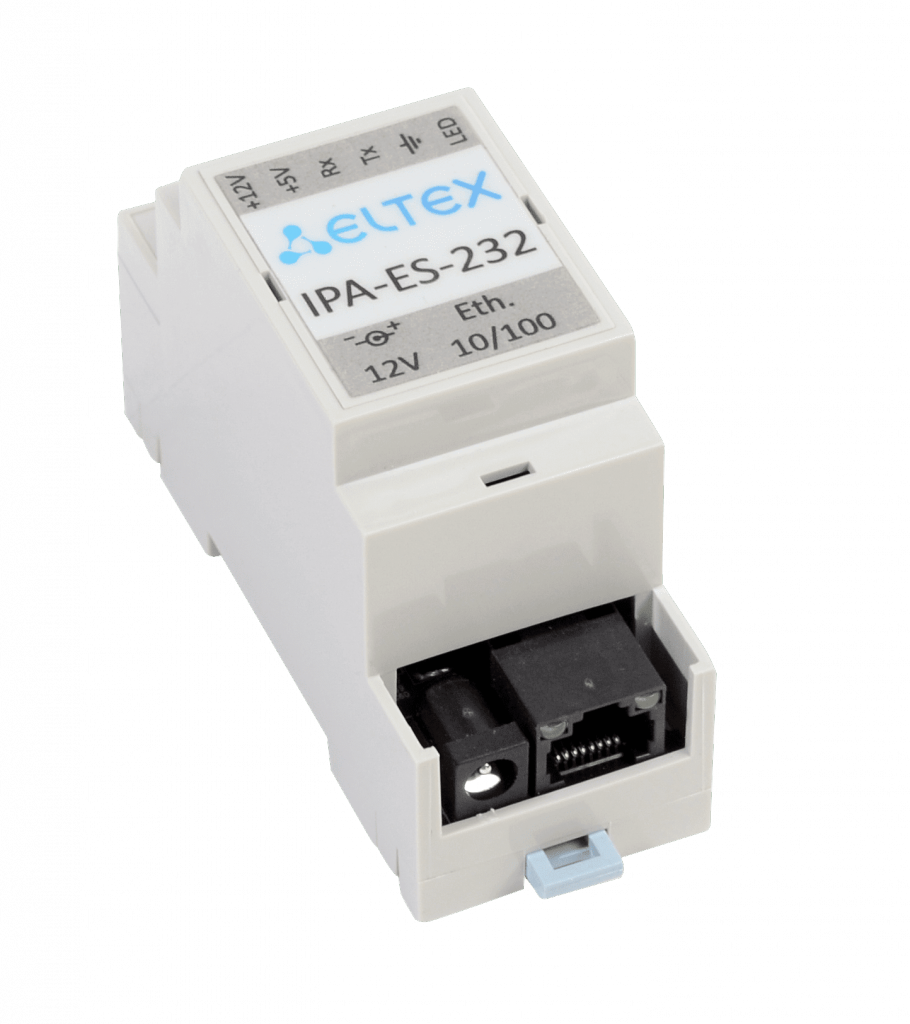

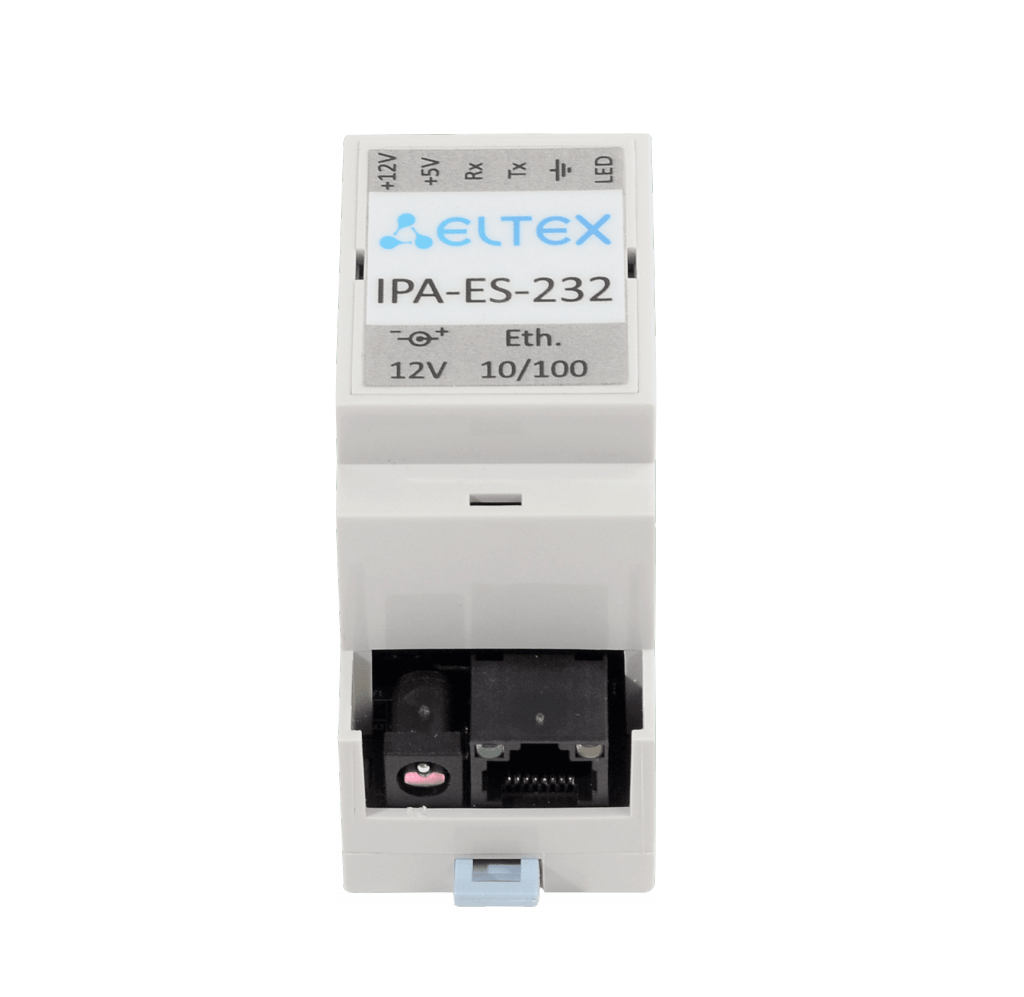

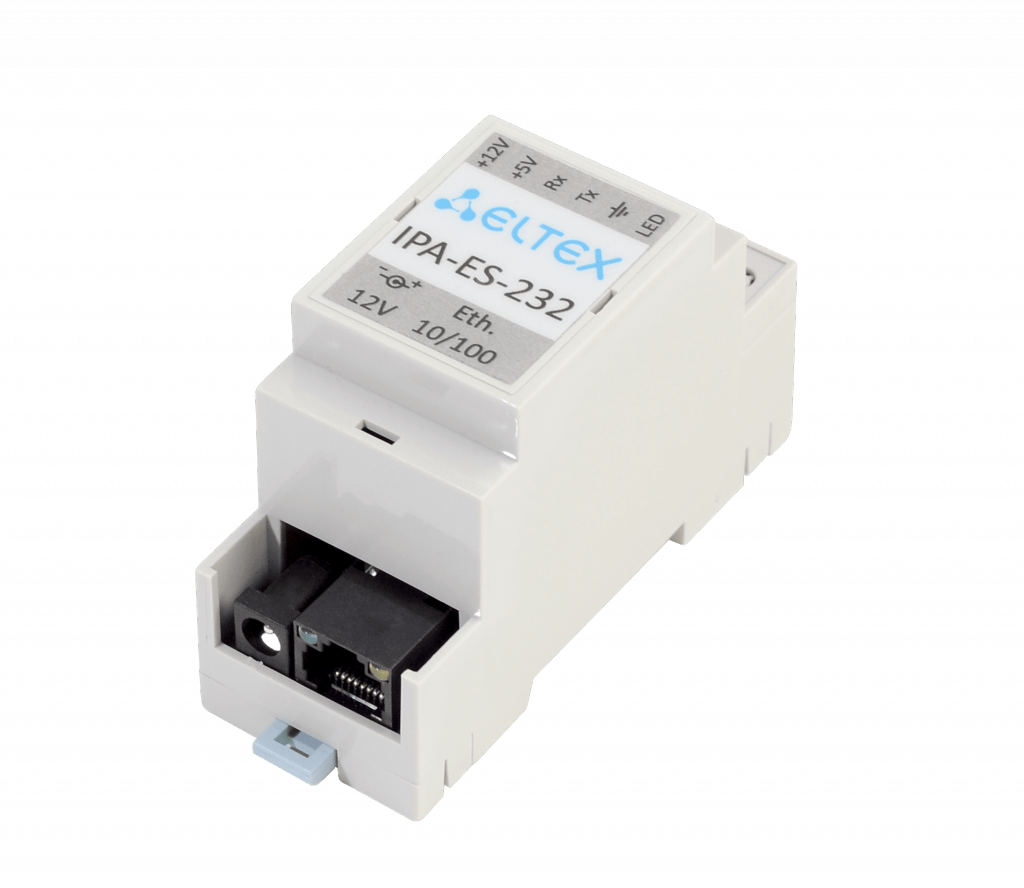

Interface converter IPA-ES-232

Pre-production

Key features:

Remote access to devices with RS-232 interfaces
Configuration of serial interface parameters
DIN rail mounting

IPA-ES-232 interface converter is designed to provide remote access to devices with RS-232 interface via Ethernet.

IPA-ES-232 transmit data from Ethernet network to the serial interface and vice versa without any changes. The converters allow configuring serial interface parameters such as transmission rate, parity check and number of data bits in a parcel.

The device is mounted on a DIN rail.

Show all

Interfaces

10/100BASE-TX: 1, RJ-45
RS-232: 1, terminal block
5 V power output: 1, terminal block
12 V power output: 1, terminal block

Physical parameters

Power supply - 12 V DC (Jack)
Operating temperature - from 0 to 55°C
Relative operating humidity - 20-80%
Form factor - plastic casing with DIN rail mounting
Dimensions (W х H х D) - 36 х 57 х 96 mm

Show all

Descriptions

Data Sheet

Downloads

Operational lifetime of the ELTEX equipment

Regardless of the operational lifetime stage, Eltex provides a 12 months warranty on all its telecommunication equipment.
During the warranty period the manufacturer ensures technical support and free-of-charge repair at the Enterprise which is situated in Novosibirsk.
As part of the warranty service, technical support is provided on the first-in first-out principle.
The priority support packages of 8/5 and 27/7 types are subjects to additional charges.
