IP camera SV-BA314-E
Mass production

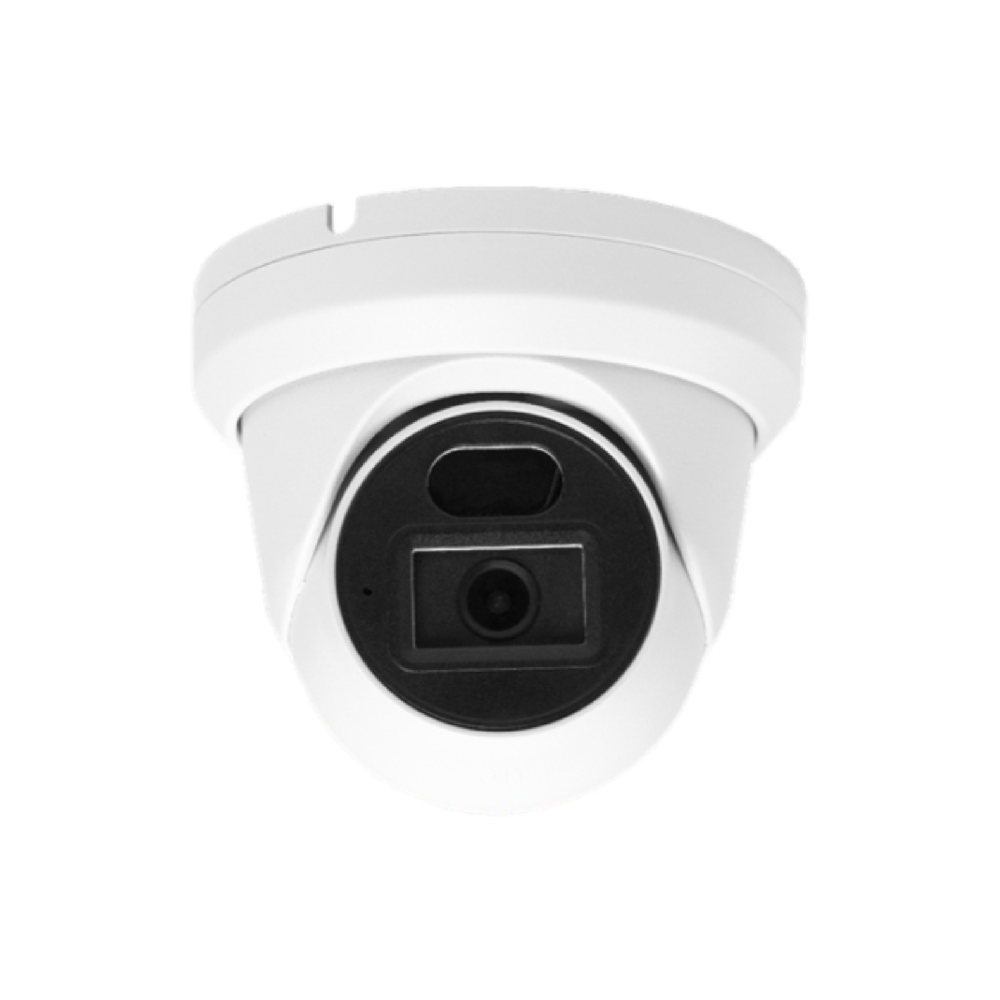

SV-BA314-E wired IP camera with a dome design provides a horizontal viewing angle of 100° and is equipped with a 4 MP CMOS matrix for clear video with a resolution of up to 2560 × 1440.The device has a night shooting mode (IR illumination), motion detection system and the function of saving the video archive to a memory card or network storage1.
The camera is equipped with a RJ-45 connector with support for basic network protocols.
1Under development.
Show all
Specifications
Documents and files
Warranty
Interfaces
- Ethernet - 1 × 10/100BASE-T (RJ-45), support for PoE
- Memory card - 1 × MicroSD/SDHC/SDXC up to 256 GB
Operating system
- Linux SDK
Sensor
- Type - 1/3" progressive scan CMOS
- Effective pixels - 4M
Lens and illumination
- Focal distance - 2.8 mm
- Aperture - F/2.0
- Field of view (horizontal) - 100°
- Field of view (diagonal) - 116°
- Angle adjustment (tilt) - from 0° to 105°
- Angle adjustment (rotate) - from 0° to 360°
- IR illumination - yes
- IR range - up to 40 m
- Maximum resolution - 2560 × 1440
- Maximum frame rate - 25 fps
- Bit rate - up to 10 Mbps
- Video compression - H.264, H.265
- Image quality improvement - DNR 2D/3D, DWDR, BLC, AE, AWB, HLC, ANTI-FLICKER, DEFOG, ROI1
- Signal-to-noise ratio - no less than 50 dB
- Minimum illumination - color: 0.01 lx, bw: 0 lx with IR
Audio
- Built-in microphone - yes
- Audio compression - PCM, AAC, MP2, ADPCM1 , G.711U (PCMU)1 , G.711A (PCMA)1 , G.7261
- Voice pickup distance - up to 5 m
Physical specifications
- Power supply - 12 V DC, PoE 802.3af
- RAM - 128 MB
- ROM - 32 MB
- Casing - metal, plastic
- Form factor - dome camera
- Mount options - indoor and outdoor
- Dimensions (Height × Diameter) - 90 × 110 mm
- Weight - 0.39 kg
- Operating temperature - from -40 to +60 °C
- Operating humidity - no more than 90 % (non-condensing)
- Ingress Protection - IP67
1Under development.
Show all
Operational lifetime of the ELTEX equipment
In development
1
Pre-production
2
Mass production
3
Mass production is over
4
Sold out
5
Support is over
6
During the warranty period the manufacturer ensures technical support and free-of-charge repair at the Enterprise which is situated in Novosibirsk.
As part of the warranty service, technical support is provided on the first-in first-out principle.
The priority support packages of 8/5 and 27/7 types are subjects to additional charges.
