MPLS router ME5210S

In development

Support for L2/L3/MPLS switching and routing mechanisms
Reliable and high performance solution due to hardware and firmware redundancy functions
A series of devices with different performance levels

ME series routers are multifunctional devices intended for use in provider networks as access, aggregation, and network edge routers. This solution can be used to organize large operator’s points of presence when providing data services for customers with high reliability requirements. ME series routers have unified software and management interfaces. In addition to traffic routing and switching, the device functions are a wide support for MPLS switching mechanisms, including MPLS Layer3 VPN, VPLS (Kompella/Martini), VPWS with pseudowire backup capabilities, Multicast-traffic routing with support for PIM-SM/PIM-SSM/MSDP/Anycast PIM/NG-MVPN protocols, as well as extensive QoS capabilities. This set of functions allows using devices as network edge routers for termination of client services.

ME5210S are routers with support for synchronization in accordance with the SyncE and IEEE 1588v2 (PTP) standards. The devices can be used in the deployment of 5G mobile network infrastructure as access, Cell Site Gateway, and network edge routers.

Show all

The values given in the technical documentation are approximate as the device is under development. The actual specifications will be published after final testing and the model launch into pre-production.

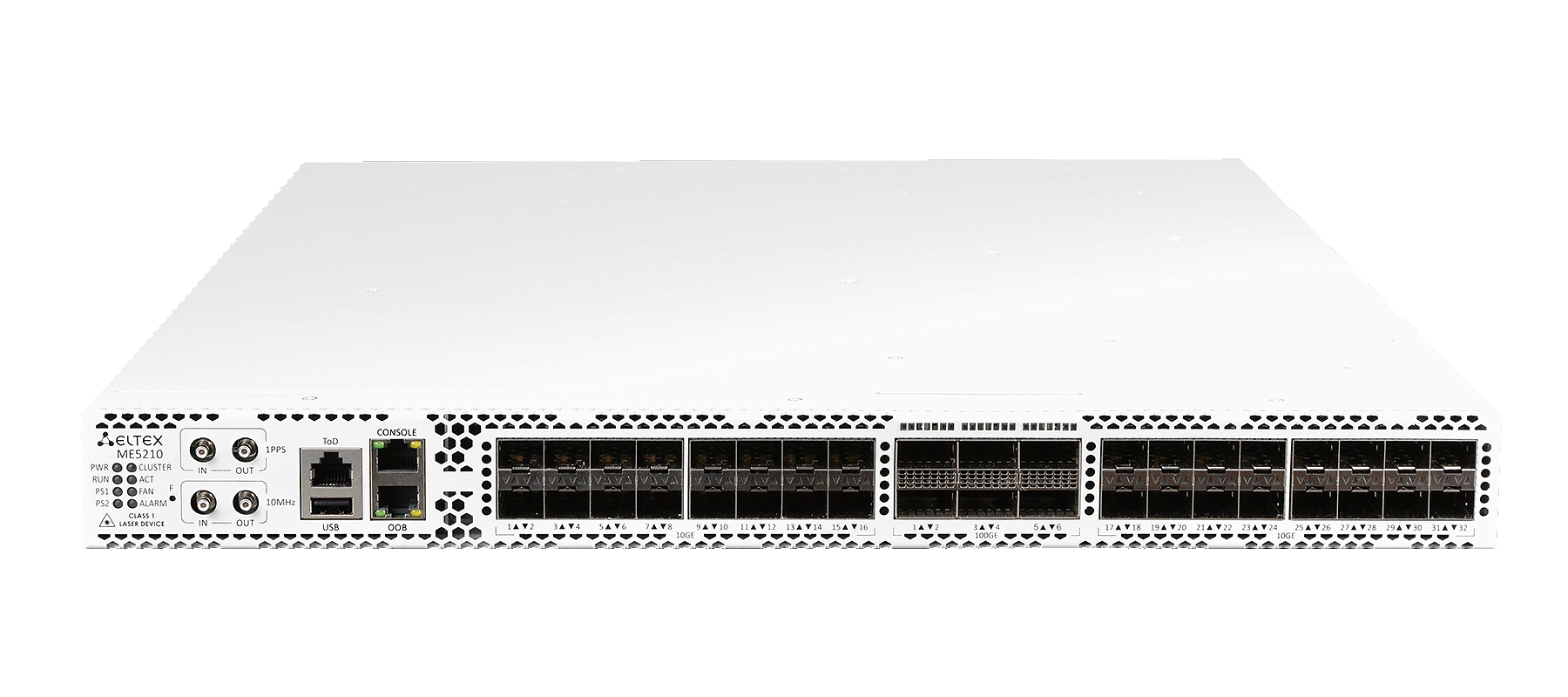

Interfaces:

Network interfaces 10GE (SFP+) - 32
Network interfaces 40/100GE (QSFP28) - 6
Management interfaces Out Of Band 1GE (RJ-45) - 1
Management interfaces Console RS-232 (RJ-45) - 1
Synchronization interfaces 1 PPS In/Out (SMB, 50 Ом) - 1
Synchronization interfaces 10 MHz In/Out (SMB, 50 Ом) - 1
Synchronization interfaces Time of Day (RJ-45) - 1
USB 2.0 - 1

Performance:

Bandwidth - 920 Gbps, 720 Mpps
RAM - 64 GB
Buffer memory - 8 GB
SSD card - SSD 256 GB (M.2)

Physical specifications and environmental parameters:

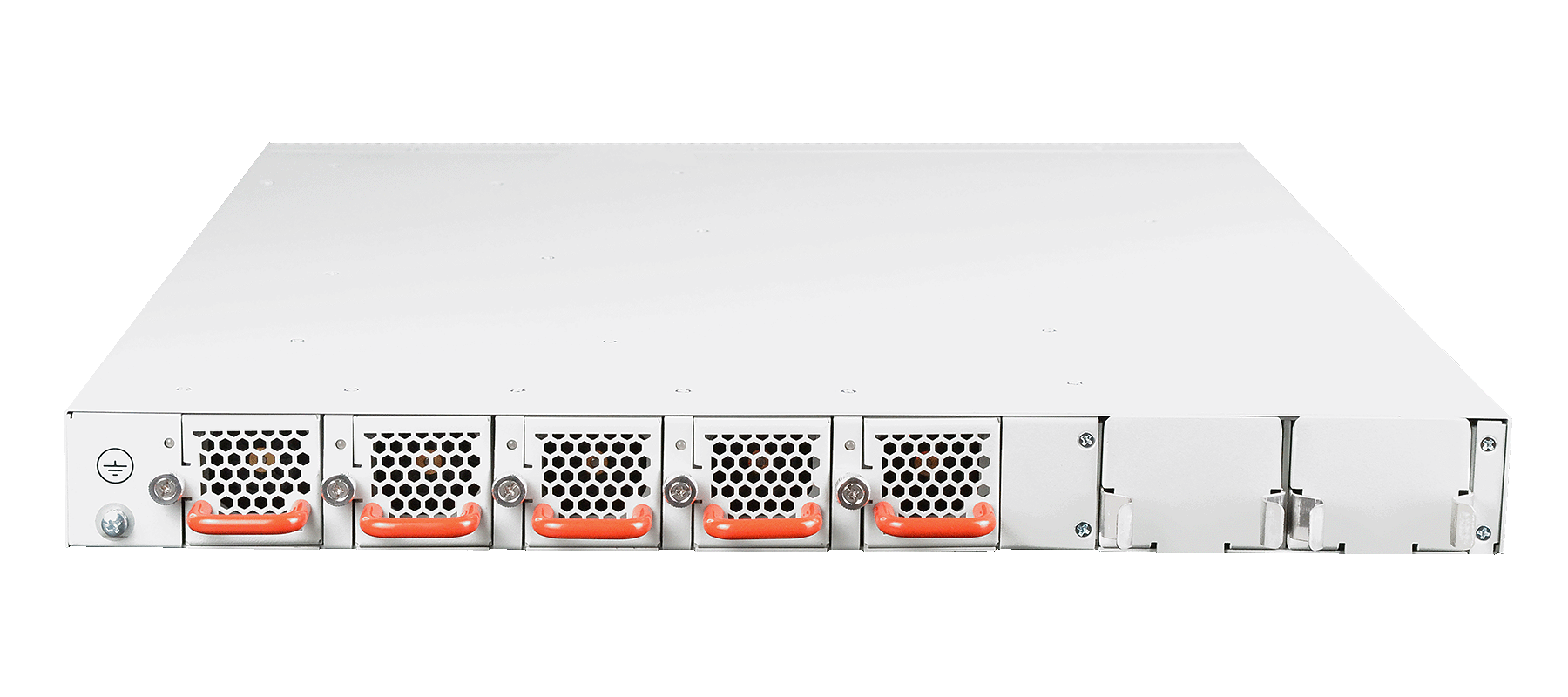

Case ventilation - Front-to-back airflow 5 hot-swappable redundant fan modules
Power supply sources - 150–250 V, 50 Hz (AC), 36–72 V (DC)
Maximum power consumption - 350 W
Operating temperature range - From 0 to 45 °C
Storage temperature - From -40 to 70 °C
Operating humidity - From 5 to 95 % without condensing
Weight - 9.8 kg
Dimensions - 440x87x560 mm

Show all

Descriptions

Data sheet

Downloads

Operational lifetime of the ELTEX equipment

Regardless of the operational lifetime stage, Eltex provides a 12 months warranty on all its telecommunication equipment.
During the warranty period the manufacturer ensures technical support and free-of-charge repair at the Enterprise which is situated in Novosibirsk.
As part of the warranty service, technical support is provided on the first-in first-out principle.
The priority support packages of 8/5 and 27/7 types are subjects to additional charges.
